K1
THE INDUSTRY BENCHMARK
K1은 글로벌 스타디움 투어와 세계적으로 가장 유명한 야외 페스티벌 사운드의 벤치마크 대상입니다. K1은 미터 당 SPL 수치로는 비교 대상이 없고 K1-SB와 함께 사용할 시 전례 없는 방향성에 대한 컨트롤을 보여 소음 공해와 야외 세팅에서의 쓰로우 문제 해결의 선두주자이기도 합니다. 거의 예술수준의 최첨단 리깅 방식을 자랑하는 K1은 정확한 배치와 빠른 설치에 적합합니다.
최고의 제작자들은 K1을 필요로 하고 있으며, 관객에게 깨끗하고 파급력 높은 K1 의 사운드를 전달할 수 있도록 L-ACOUSTICS 의 렌탈 네트워크는 최선을 다할 것입니다.
SPECIFICATIONS
▪ Description
3-way full-range active WST enclosure, quad-amplifed by LA12X
▪ Usable bandwidth (-10 dB)
35 Hz - 20 kHz ([K1])
▪ Maximum SPL
149 dB ([K1])
Nominal directivity
▪ horizontal: 90° symmetric
▪ vertical: dependent upon the number of elements and the line source curvature
Transducers
▪ LF: 2 x 15" neodymium
▪ MF: 4 x 6.5" neodymium, direct radiation
▪ HF: 3 x 3" diaphragm compression drivers
Acoustical load
▪ LF: bass-refex, L-Vents
▪ MF: bass-refex
▪ HF: DOSC waveguidesNominal impedance
▪ LF: 2 x 8 Ω
▪ MF: 8 Ω
▪ HF: 8 ΩConnectors
▪ IN: 1 x 8-point PA-COM
▪ LINK: 1 x 8-point PA-COM
Enclosure
▪ Width: 1342 mm
▪ Height: 438 mm
▪ Depth: 505 mm
▪ Weight (net): 106 kg / 234 lb
▪ Cabinet: first grade Baltic birch plywood, high density polyethylene
▪ IP Rating: IP43
ACCESSORIES
K1-BUMP
Structure for flying a vertical K1/K1-SB line source array
K1-DELTA
Azimuth angle setting delta plate (to be used in conjunction with K1-BUMP)
KARA-DOWNK1
Accessory to rig KARA as a K1-downfill array
K1BUMP-FLIGHT
Modular flight-case for up to 4 K1-BUMP flying structures
K1-LASERMOUNT
Laser support plate for a K1 or K1-SB enclosure
K1-CHARIOT
Cart for an array of 4 K1 and/or K1-SB enclosures

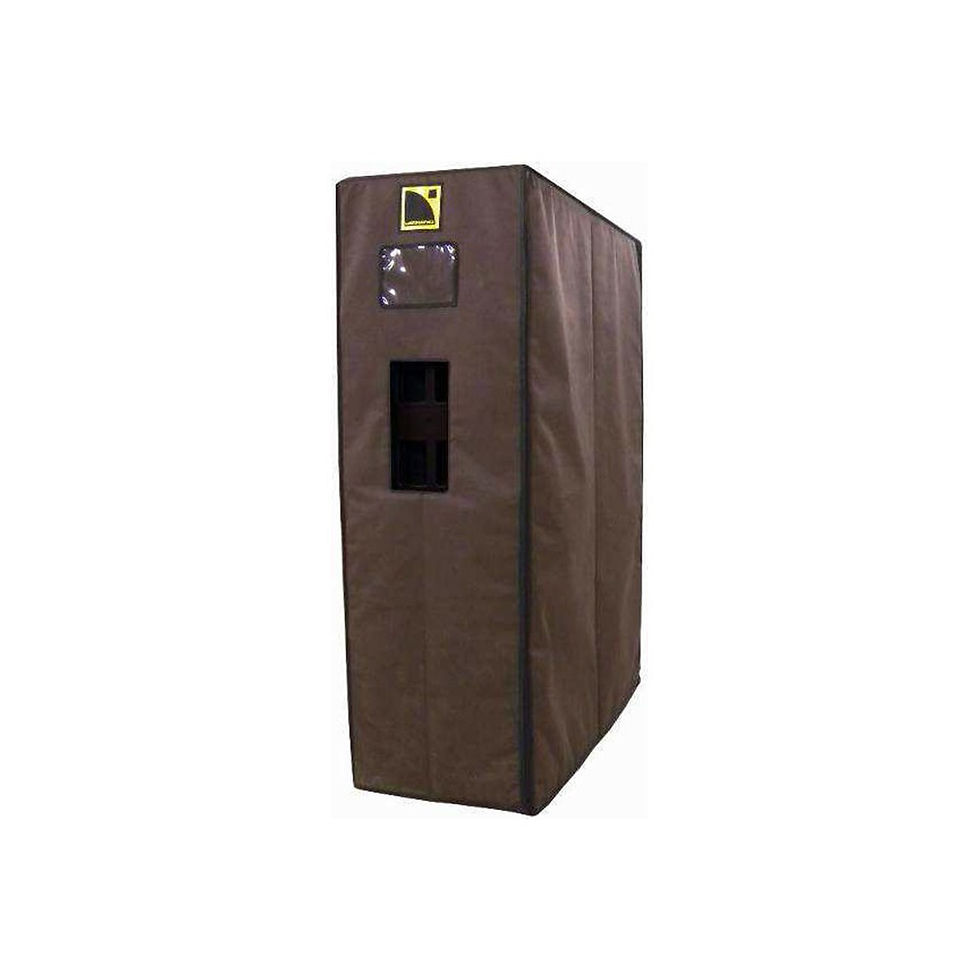

K1-CHARIOTCOV
Protective cover for an array of 4 K1 and/or K1-SB enclosures
K1-PLA
Removable front dolly board for one K1 or K1-SB enclosure
K1-COV
Protective cover for one K1 enclosure
K1-SBCOV
Protective cover for one K1-SB enclosure
